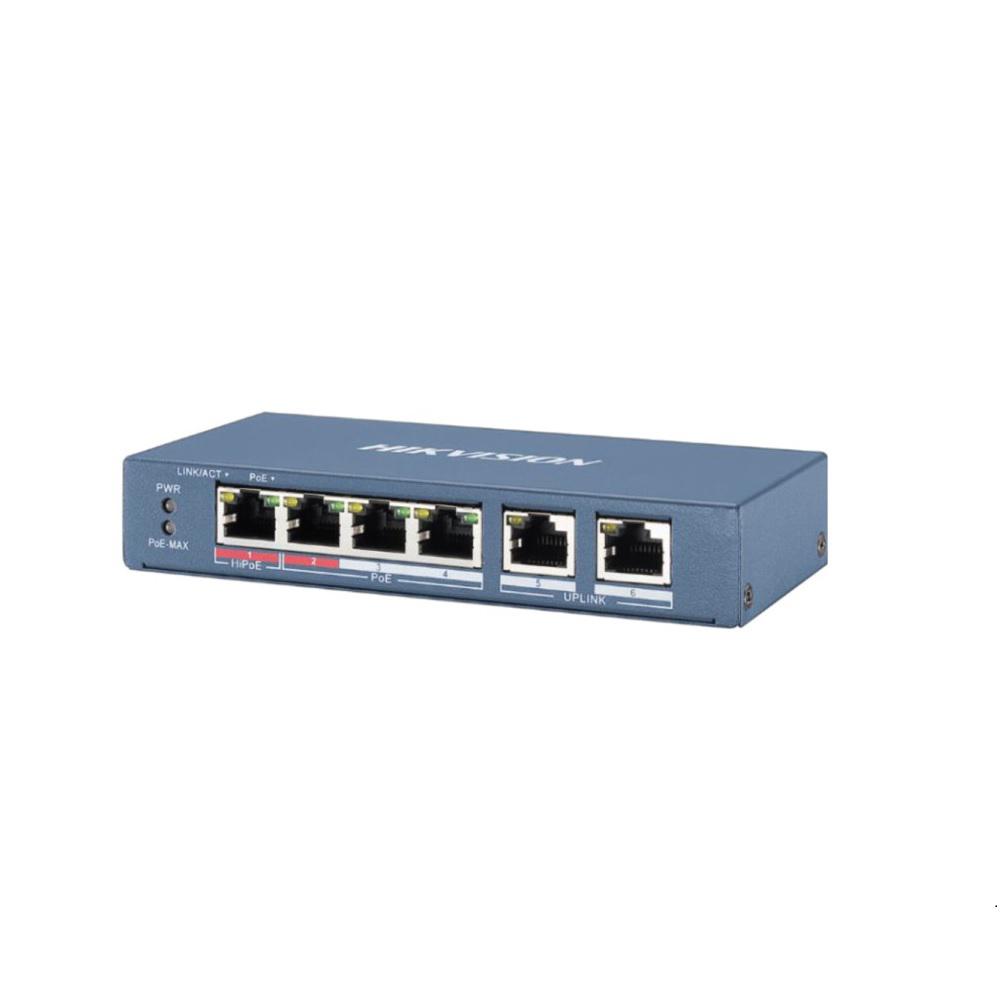

Switch Hi-POE 4 porturi Hikvision DS-3E0106HP-E; 1 × 10/100 Mbps HiPoE port, 3 × 10/100 Mbps PoE ports si 2 × 10/100 Mbps RJ45 ports; Port type: RJ45 port, full duplex; portul 1 HI-PoE- alimentare pana la 150metri, buget maxim 60W; porturile 2-4 alimentare POE pana la 250metri in modul Extended, buget maxim 30W per port; buget total switch: 60W; Dual uplink network design; 2 × 10/100 Mbps RJ45 uplink ports; PoE power management; material: metal; temperatura de functionare: -10 °C la 55 ° C; dimensiuni: 145 mm × 25.6 mm × 68.45 mm; greutate: 0.24 k
| Storage relative humidity (H-H) | 5 – 95% |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Number of fans | 0 fan(s) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Installed SFP modules quantity | 0 |
| 10G support | No |
| Switch type | Unmanaged |
| MAC address table | 2000 entries |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Store-and-forward | Yes |
| Basic switching RJ-45 Ethernet ports type | 6 |
| Switching capacity | 12 Gbit/s |
| DC input voltage | 48 V |
| Porturi RJ 45 | 1-4 |
| Viteza transfer | Fast Ethernet |
| Porturi SFP | N/A |
| Montare in rack | Nu |
| Input current | 1.35 A |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Forwarding rate | 0.893 Mpps |
| Management | nu |
| PoE | Da |
| Storage temperature (T-T) | -40 – 85 °C |
| Product colour | Blue |
| Housing material | Metal |
| Operating temperature (T-T) | -10 – 55 °C |
| LED indicators | Activity, Link, Power |
| Width | 145 mm |
| Power consumption (max) | 65 W |
| Weight | 240 g |
| Package weight | 770 g |
| Depth | 68.5 mm |
| Height | 256 mm |
| Producator | HIKVISION |
| Garantie | 36 |
